Switch Board
A better value for clients will be achieved.

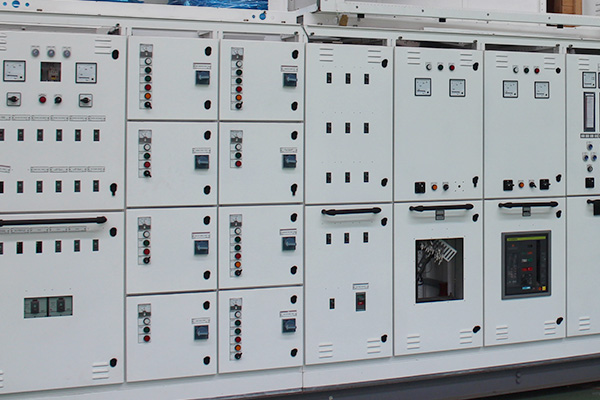

Main switchboard provides the electricity generated from the generator to the electric facilities in a shipment and also switches,
surveils, and protects circuits.
It is consist of generator panels, synchronizing panel,
feeder panels and G.S.P. It is made for the easy maintenanace and surveillance with a sturdy structure.
Most of G.S.P are installed in Main switchboard.
It is consists of the combination of separate maneuver panels that
enable easy maintenance, repair, and managements.
The compact design reduces the space needed for installation,
which maximize the space utilization.

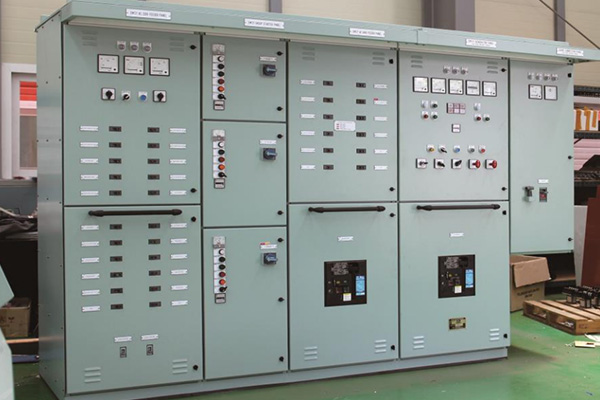

Emergency switchboard is automatically operates when there is a problem with the power supply of main switch board.
It is consist of generator panels, emergency switchboard, feeder panels and shore power suppliers.

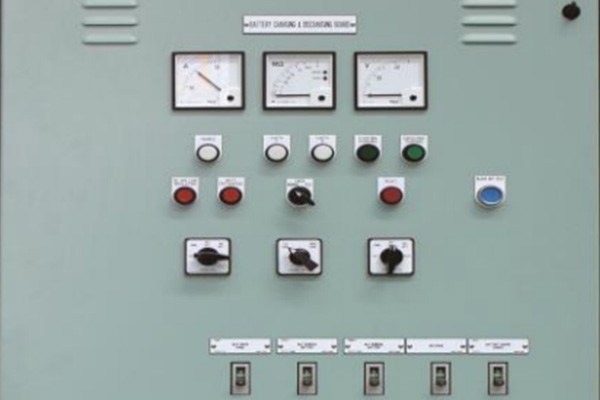

Battery charge & discharge board is provided with a charger to allow the floating and equalizing charge
of the battery in order to supply power to the emergency lighting system, telephone, equipment,
alarm circuit, etc..
Also, for each load, protective such as fuse serve for safe protection against accidents.
