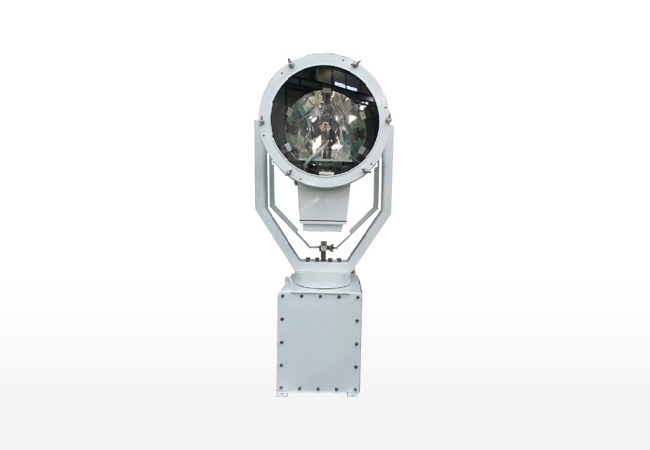

    Normal-Type hdx-50

    XENON Search Light(5kW)

    Download

    Manual Catalog Specification Outside Drawing

    Detail

    • Search Light Normal-Type

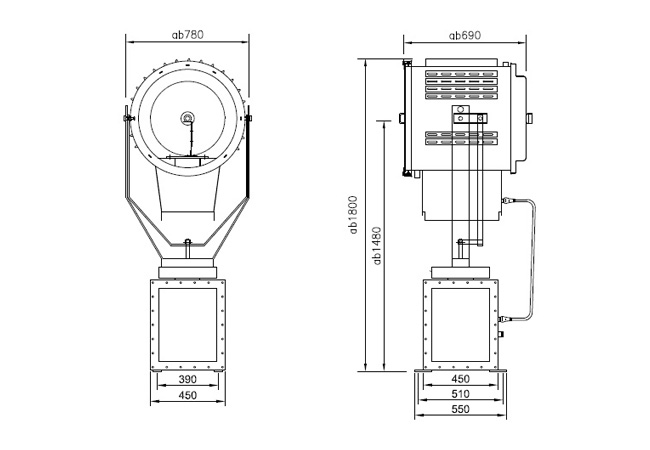

    • Outside Drawing

    General Specification

    Power Supply Voltage AC220V, 1/3PH, 50/60Hz
    Lamps XENON LAMP 5kW
    Reflector 450mm
    Max.Luminous Intensity Of Light Beam 210x106
    Operation Electric Remote Control
    Beam Spread 0.5~15˚
    Elevation Angle Up - 20˚, Down - 40˚
    Turning Angle Right - 175˚, Left - 175˚
    Protection IP56
    Material Sus
