    E-Type hdx-30e

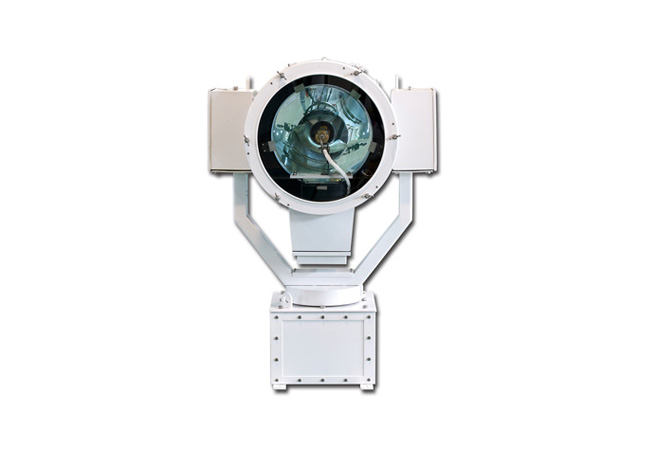

    XENON Search Light(3kW)

    Download

    Manual Catalog Specification Outside Drawing

    Detail

    • Search Light E-Type

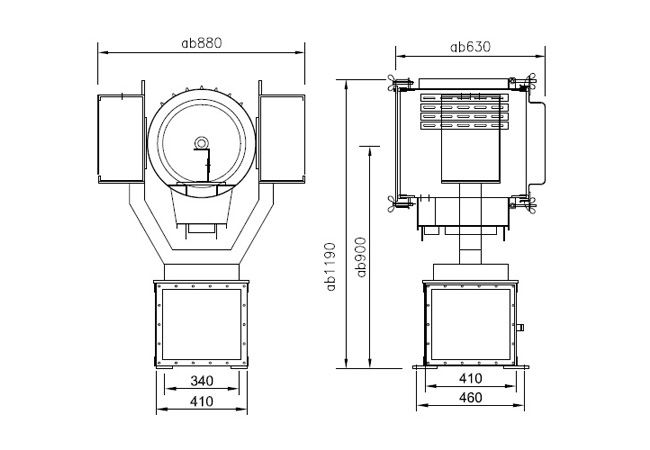

    • Outside Drawing

    General Specification

    Power Supply Voltage AC220/380/440V, 1/3PH, 50/60Hz
    Lamps XENON LAMP 3kW
    Reflector 400mm
    Max.Luminous Intensity Of Light Beam 150x106
    Operation Electric Remote Control
    Beam Spread 0.5~15˚
    Elevation Angle Up - 20˚, Down - 40˚
    260˚회전 : Option
    Turning Angle Right - 175˚, Left - 175˚
    360˚연속회전 : Option
    Protection IP56
    Material Sus
    Preset 1) Preset적용(지정위치 자동추적) : Option
    2) 자이로 연동(방위각 자동추적) : Option
    3) GPS 연동(위도, 경도 자동추적) : Option
    Auto Tracking 1) Auto Tracking-s : Option
    2) Auto Tracking-a : Option
    인공지능 적용객체 자동추적 Option
